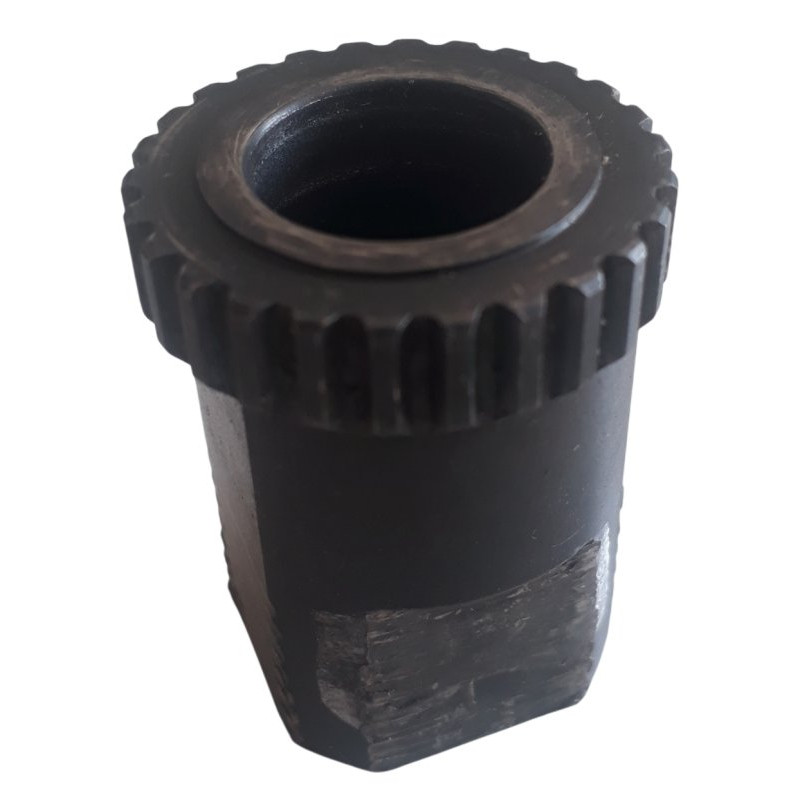

DT Swiss tool

DT Swiss Tool for ratchet hubs: simplified removal and installation in the workshop

Maintaining DT Swiss hubs equipped with the Ratchet system sometimes requires specific tools, especially when working on the threaded ring and internal bearings. The DT Swiss Ratchet hub tool is designed precisely to make these operations easier in the workshop, ensuring clean and safe disassembly.

An essential tool for DT Swiss ratchet hubs

This steel tool is specifically designed for the installation and removal of the threaded ring found on DT Swiss hubs equipped with the Ratchet freehub system.

Its main purpose is to provide a secure grip on the ring, allowing it to be removed without damaging surrounding components. It is also essential for extracting the bearing located beneath this ring, a delicate operation without the proper tooling.

Easy workshop use

Designed for workshop use, this DT Swiss tool is easy to use with a bench vise.

Simply insert it correctly into the holding tool and proceed with removal or installation. However, some precautions should be followed:

• Do not overtighten the vise to avoid deforming the tool

• Work carefully to preserve threads and contact surfaces

• Ensure proper positioning before any operation

Thanks to its robust steel construction, it provides excellent stability during repeated use.

Compatibility with DT Swiss hubs

This tool is compatible only with the following systems:

• DT Swiss Ratchet hubs

• DT Swiss 180

• DT Swiss 240

• DT Swiss 350

⚠️ Please note that this tool is not compatible with the EXP system, which uses a different design.

Condition and usage

This is a used tool in average condition. The flats show some wear and are slightly rounded, which does not prevent use but may reduce precision or lifespan under heavy workshop use.

Conclusion

The DT Swiss Ratchet hub tool remains essential for any bicycle workshop or mechanic working on DT Swiss 180, 240, and 350 hubs. Despite signs of wear, it still allows effective removal and servicing of threaded rings and internal bearings.

A simple yet highly technical tool designed for servicing high-end DT Swiss hub systems.
