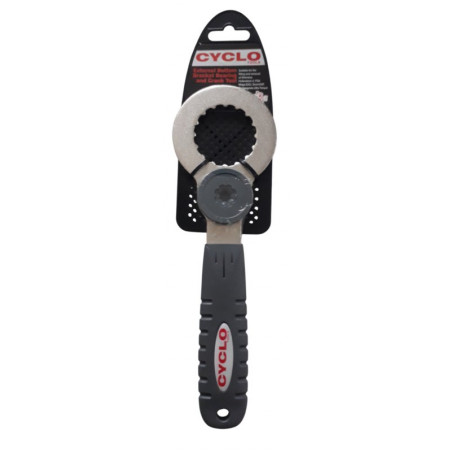

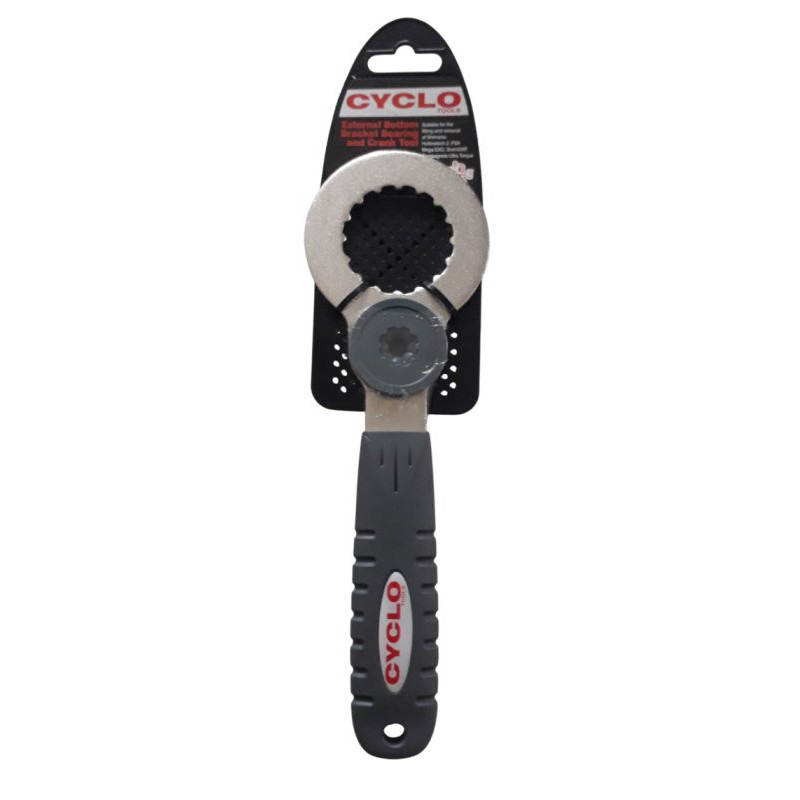

Shimano Hollowtech 2 bottom bracket key

Shimano bottom bracket tool: a must-have for smooth drivetrain maintenance

When it comes to maintaining your bike at home, some tools are absolutely essential. Among them, the Shimano bottom bracket tool stands out as a must-have. Designed specifically to remove and tighten external bottom bracket cups, it deserves a permanent spot in any cyclist’s toolbox. Let’s take a closer look at its features, technical specifics, and why it’s so important for proper drivetrain care.

What is a bottom bracket tool used for ?

The bottom bracket is a key component of the bike drivetrain, ensuring smooth crank rotation. On modern models with external cups, such as Shimano Hollowtech II bottom brackets, removal requires a dedicated tool. Standard wrenches or pliers simply won’t provide the right grip or torque.

The Shimano bottom bracket tool allows you to:

• Remove external cups without damaging the notches.

• Tighten new bottom brackets with the correct torque setting.

• Prevent creaking noises or unwanted play caused by poor installation.

• Work cleanly without scratching the aluminium cups.

Key features of a Shimano bottom bracket tool

Tools designed for Shimano external bottom brackets offer several advantages:

Notched profile tailored to Shimano cups

The head of the tool features a circular engagement with precise notches, perfectly matching Shimano cups (Hollowtech II, SM-BB52, SM-BB70, etc.). This ensures a secure grip and prevents slipping.

Extended handle for better leverage

Many models come with a long arm, making it easier to apply the recommended torque (typically between 35 and 50 Nm). The ergonomic handle improves comfort, even when dealing with seized components.

Suitable for workshop or on-the-go repairs

There are two main types:

• Heavy-duty workshop tool with ergonomic grip – ideal for frequent use.

• Compact version that fits in a multi-tool or portable kit – perfect for bikepacking or mobile mechanics.

Built to last

Most tools are made from hardened steel, often with an anti-corrosion coating, guaranteeing durability even with intensive use.

Why choose a Shimano-specific bottom bracket tool over a universal one ?

While universal tools exist, a Shimano-specific bottom bracket tool offers:

• Perfect fit with Shimano’s specific notches.

• No risk of damaging lightweight aluminium cups.

• Better mechanical feedback during tightening.

• Increased longevity of both the tool and the components.

In a properly equipped bike workshop, this tool stands alongside other essentials such as chain whip, cassette remover, torque wrench, tyre levers, and crank puller.

How to use it for optimal installation

1. Clean and lightly grease the frame threads.

2. Position the Shimano bottom bracket tool on the external cup.

3. Hand-tighten first in the correct direction (left/right depending on the side).

4. Use the tool with a torque wrench if possible.

5. After reassembling the crankset, check for any lateral play.

Pro tip: some Shimano tools also feature a small driver socket for pre-tightening the plastic preload cap, saving you from buying an extra tool.

Conclusion: a simple yet essential tool

Compact, durable and precise, the Shimano bottom bracket tool is one of the most useful bike workshop tools for proper drivetrain maintenance. Whether you’re a passionate home mechanic or a casual rider who likes DIY maintenance, this tool will help you work more accurately and confidently.
