Shimano Dura ace FH 7400 hubs 8s uniglide

Shimano Dura-Ace FH-7400 hubs: classic road bike components

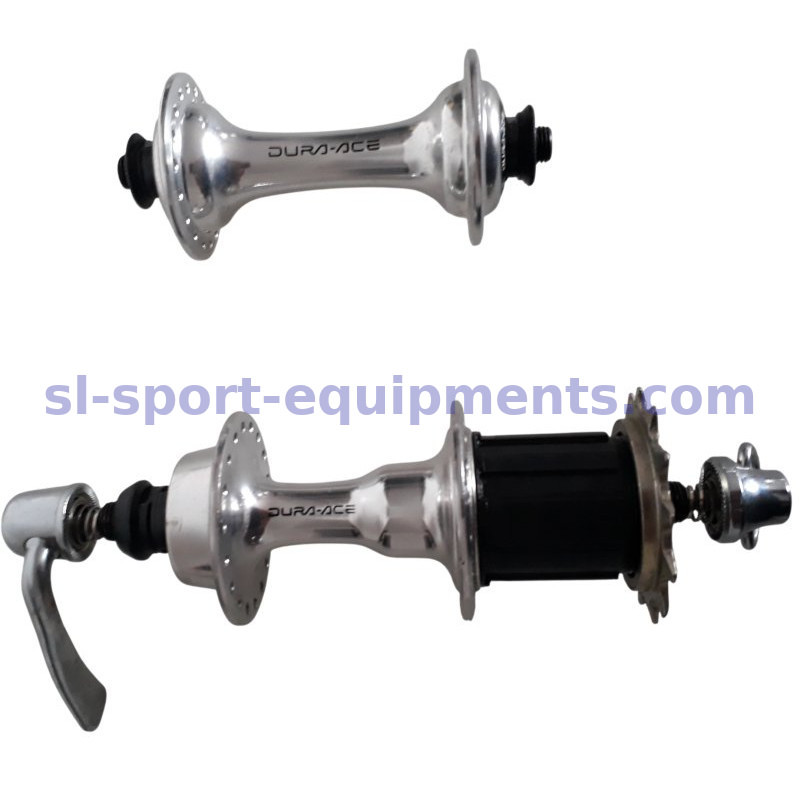

Looking for Shimano Dura-Ace FH-7400 hubs to build or restore a road bike wheel? This set of 36-hole aluminium hubs is ideal for a wheel-building project or the restoration of a classic road bike equipped with an older-generation Shimano drivetrain. The rear hub features a Shimano Uniglide 8-speed freewheel and comes with a 13-tooth sprocket.

The rear hub has been laced into a wheel but has never been used. It is in near-new condition, with minor marks left by the spoke heads. The front hub is brand new and has never been laced.

Shimano Dura-Ace hub specifications

• Brand: Shimano
• Range: Dura-Ace
• Model: FH-7400
• Use: Road cycling
• Material: Aluminium
• Spoke holes: 36
• Rear drivetrain: Shimano Uniglide 8-speed
• Sprocket included: 13 teeth, screw-on type
• Weight: 645 g

Front and rear hub dimensions

Check the dimensions below to ensure these hubs are suitable for your wheel-building project.

• Rear hub flange outer diameter: 52 mm
• Front hub flange outer diameter: 46 mm
• Rear hub flange spacing: 53 mm
• Front hub flange spacing: 71 mm
• Rear spoke hole circle diameter (PCD): 45 mm
• Front spoke hole circle diameter (PCD): 38 mm

Compatibility: Shimano Uniglide 8-speed freewheel

The rear hub is fitted with a Shimano Uniglide 8-speed freewheel and supplied with a 13-tooth sprocket. Before purchasing, check compatibility with your drivetrain and make sure the hub dimensions are suitable for your frame and wheel build.

Hub condition and included items

• Rear hub: Assembled but never used, in near-new condition. Minor marks are visible around the spoke holes where the spoke heads have made contact.
• Front hub: Brand new, never laced.
• Front quick-release skewer: Not included.
• Rear quick-release skewer: Included.
• Rear sprocket: 13-tooth sprocket included.

Why choose Shimano Dura-Ace FH-7400 hubs ?

These Shimano Dura-Ace hubs are an excellent option for classic road bike enthusiasts, vintage component collectors, and cyclists looking to restore a traditional road bike. Their aluminium construction, 36-hole drilling, and Shimano Uniglide 8-speed freewheel make them worth considering for a compatible wheel-building project.

Please check the dimensions and drivetrain compatibility before ordering to ensure these hubs are suitable for your bike.
