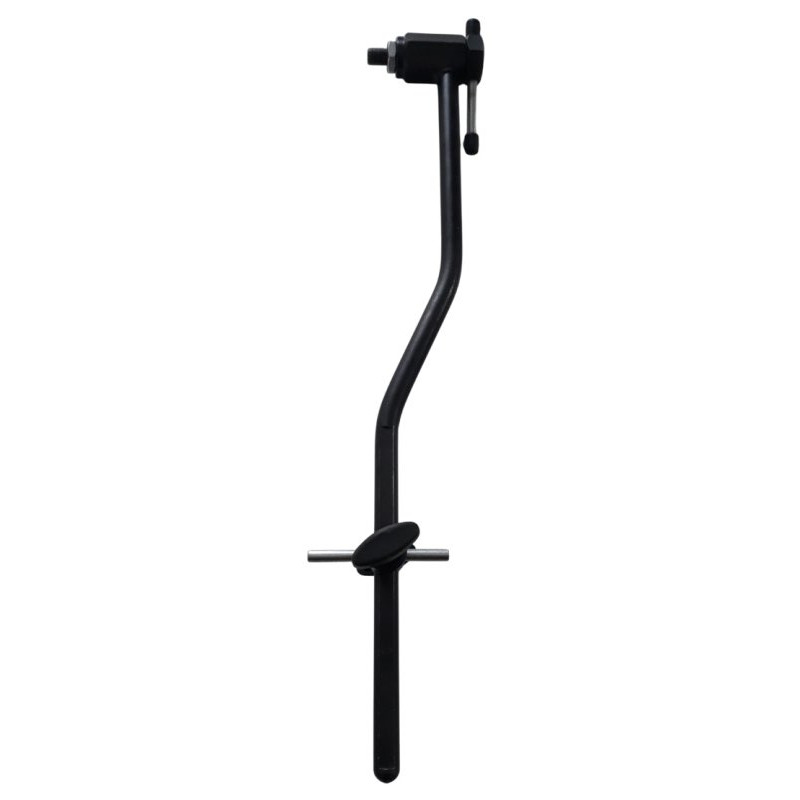

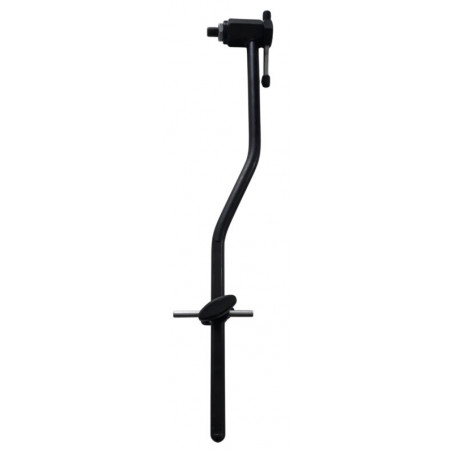

Derailleur hanger alignment tool

Derailleur hanger alignment tool: a must-have for precise gear shifting

When a bike starts shifting poorly, most riders immediately think of adjusting the derailleur or checking cable tension. However, the real issue often lies in a commonly overlooked component: the derailleur hanger. To ensure perfect alignment of this part, using a derailleur hanger alignment tool is essential. This precision tool is a must-have in any bike workshop or home mechanic setup.

Why use a derailleur hanger alignment tool ?

The derailleur hanger is a thin piece, often made of aluminum, designed to bend slightly during an impact to protect the drivetrain. A minor hit or fall can cause a slight misalignment, resulting in:

• Skipping gears

• A derailleur rubbing or making clicking noises

• The chain dropping under pressure

• A derailleur adjustment that won’t stay consistent

The derailleur hanger alignment tool allows you to check and straighten the hanger so it sits perfectly parallel to the wheel. It’s a simple yet extremely effective adjustment to restore smooth and accurate shifting.

Key features of a quality derailleur alignment tool

To be efficient in a bike workshop or home mechanic toolbox, a derailleur alignment tool should offer:

• Universal compatibility – fits most standard derailleur hangers (road bikes, MTB, gravel, hybrid).

• Long and rigid gauge arm – enables precise control over alignment across the entire wheel radius.

• Measurement reference system – a sliding indicator that aligns with the rim to measure offset and guide adjustment.

• Durable construction – steel or reinforced aluminum to withstand leverage and bending forces.

• High precision – a reliable tool provides millimetric alignment without play or flex.

How to use it: a straightforward mechanical step

Using this specialized adjustment tool doesn’t require professional mechanic skills. Here’s the process:

1. Remove the rear wheel

2. Thread the tool into the derailleur hanger

3. Measure the gap between the tool and the rim at different points (top, bottom, front, back)

4. Apply controlled leverage to gently straighten the hanger until the gauge shows even alignment all around

5. Reinstall the derailleur and fine-tune gear shifting using barrel adjusters or limit screws

This instrument belongs to the category of precision bike tools, similar to a torque wrench or a high-quality chain breaker.

A valuable tool to extend drivetrain lifespan

A misaligned hanger puts stress on the chain, cassette, and rear derailleur. Straightening it with a derailleur hanger alignment tool helps prevent:

• Premature cassette wear

• Chain drop under load

• Constant adjustment issues

• Annoying drivetrain noises

The result? A smoother, quieter bike and a responsive drivetrain that shifts with accuracy.

Final thoughts

The derailleur hanger alignment tool is an essential part of any well-equipped bike tool kit. It’s one of those diagnostic and correction tools that turns a finicky drivetrain into a crisp and smooth-shifting system. Whether you ride road, MTB, or gravel, this tool is a real asset for anyone who loves riding a perfectly tuned bike.
