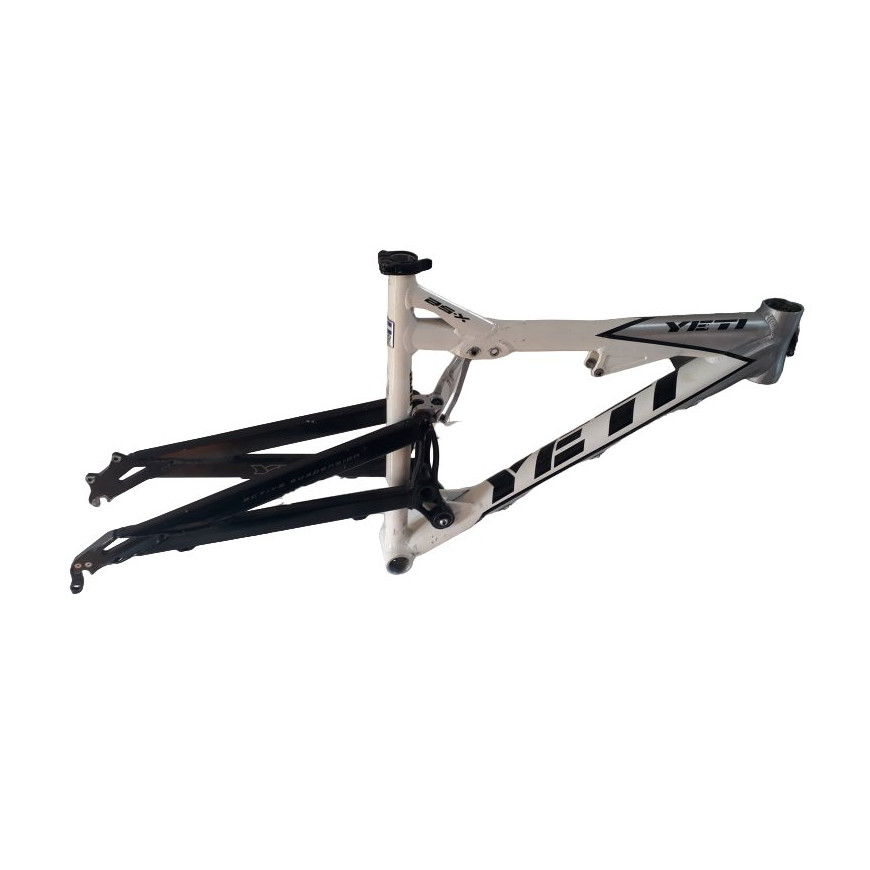

Yeti ASX MTB freeride frame size M

Yeti ASX mountain bike frame size M – aluminum, 26-inch wheels

The Yeti ASX mountain bike frame size M is a solid and technical platform designed for riders looking for a reliable, versatile, and upgradeable MTB chassis. Built in aluminum, it offers a good balance between stiffness and responsiveness for precise handling on varied terrain.

From a durability and maintenance perspective, it is highly recommended to apply a road bike frame protection film or tape, even though this model is intended for mountain biking. This helps protect vulnerable areas from impacts, cable rub, and mud abrasion, especially on chainstays and the down tube.

A performance-oriented MTB frame

This aluminum Yeti ASX frame is designed for aggressive MTB use with a geometry suited for 26-inch wheels.

Main specifications:

• Size M

• Top tube length: 56.5 mm (center-to-center)

• Bottom bracket center to top tube height: 48.5 mm

• Lightweight and durable aluminum construction

• Compatible with 26-inch wheels

• Bottom bracket width: 72 mm

• Seat tube diameter: 27.2 mm

• Seat clamp included

For long-term durability, applying road bike frame protection on exposed areas (chainstays, seatstays, down tube) is strongly recommended to reduce wear over time, even on an MTB frame like this one.

Suspension system and compatibility

The Yeti ASX frame features a linkage-based suspension design with swingarm and linkages.

Included components:

• Swingarm

• Linkages

• Rear derailleur hanger

• Seat clamp

Compatibility:

• Front derailleur: clamp type Ø 35 mm

• Semi-integrated headset (49 mm upper and lower head tube diameter)

• Linkage bearings: no play detected

This setup provides a solid technical base for a custom MTB build, provided all compatibility standards are respected.

Configuration and missing parts

This frame is sold without shock absorber, allowing for a fully customized suspension setup depending on rider preference.

Not included:

• Rear shock

• Shock axle for linkage system

• Cable routing guides under the bottom bracket

This configuration offers flexibility but requires careful assembly and protection of exposed areas. In this context, a road bike frame protection kit can also help prevent cable rub and surface damage on unprotected zones.

Condition of the Yeti ASX frame

This is a used frame in average condition.

Notes:

• Visible scratches on the frame

• One crack on a linkage located between the swingarm and the shock mounting area (see photo n°3)

This point is important and should be carefully considered before any rebuild or use. A full inspection is strongly recommended.

Why use road bike frame protection on an MTB frame ?

Even though this is a mountain bike frame, road cycling protection practices are highly relevant. A road bike frame protection kit helps to:

• Prevent cable rub damage

• Protect high-wear areas

• Preserve paint and aluminum surfaces

• Extend overall frame lifespan

On a technical frame like the Yeti ASX, protection is especially useful on chainstays, down tube, and cable contact points.

Assembly considerations

Before building the bike, make sure to check:

• Compatibility of the 49 mm semi-integrated headset

• Correct rear shock selection (not included)

• Bottom bracket compatibility (72 mm)

• Seatpost diameter (27.2 mm)

• Front derailleur clamp size (Ø 35 mm)

Proper assembly combined with road bike frame protection will significantly improve durability despite the frame’s used condition.

Conclusion

The Yeti ASX size M aluminum MTB frame remains an interesting base for a custom 26-inch mountain bike build or restoration project. Its linkage suspension design, included components, and technical compatibility make it a solid platform, despite its used condition and the presence of a crack on one linkage.

To maximize durability and reduce wear over time, applying a road bike frame protection solution is strongly recommended, even in a mountain bike context, to preserve key contact and stress areas.
