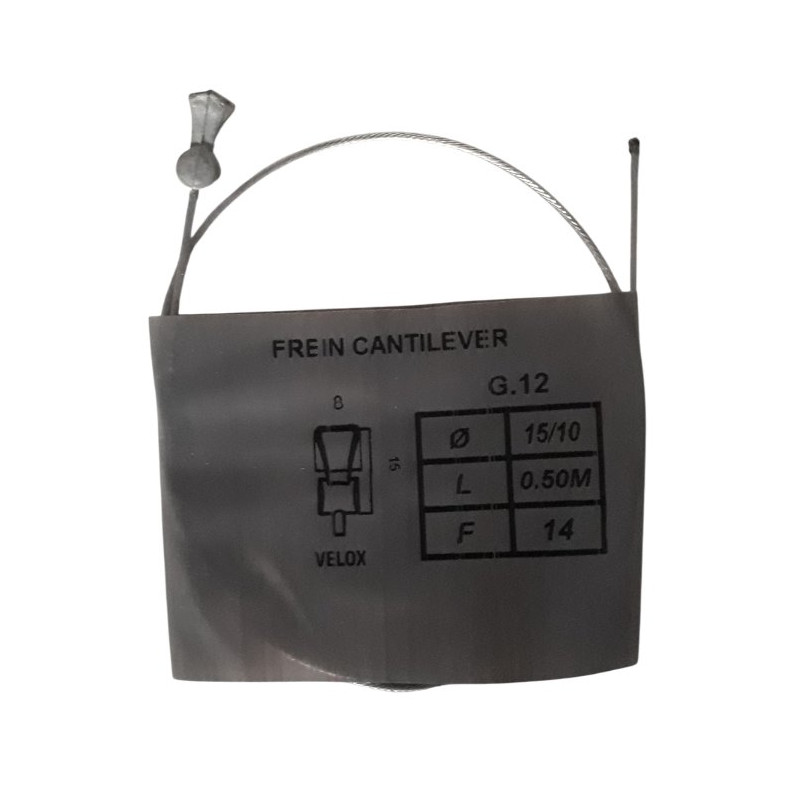

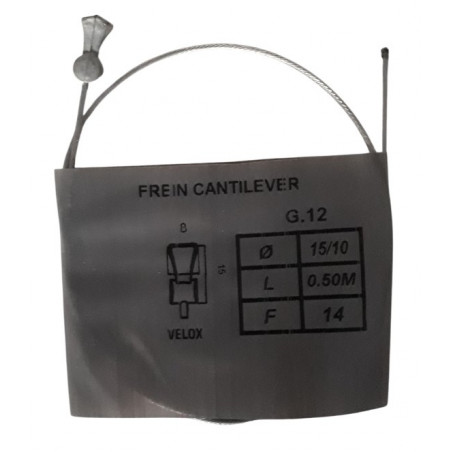

Cantilever brake cable

Cantilever brake cable: features and specifications of center-pull braking

The cantilever brake cable plays a crucial role in the braking system of bikes equipped with center-pull brakes. Commonly found on mountain bikes (MTB), cyclocross bikes, and some touring bikes, this type of cable is designed for compatibility with cantilever brake arms. Let’s take a closer look at its unique features, advantages, and what you need to know for reliable and efficient braking.

What is a cantilever brake cable ?

Cantilever brakes operate via a center-pull system: the brake arms are mounted on either side of the fork or rear seat stays and are actuated by a cable pulled from a central point. The cantilever brake cable consists of two main components:

• The main cable: connects the brake lever to a small piece called a noodle or straddle cable yoke, which distributes tension evenly.

• The transverse (straddle) cable: a shorter cable forming an angle between the two brake arms, transferring the pulling force from the main cable to both sides.

This setup delivers powerful braking, even in tough conditions like mud, rain, or rugged terrain—making it a favorite among off-road riders.

Technical features of a cantilever brake cable

Here are the key specifications to consider when choosing and installing a cantilever brake cable:

1. Proper length

The main cable must be long enough to run smoothly from the brake lever to the center of the cantilever brake, without excessive tension. The straddle cable length depends on brake arm spacing—usually between 80 and 130 mm.

2. Compatibility with cantilever brakes

Cantilever brake arms are wider apart than V-brakes, so it’s essential to use a compatible straddle cable, often with a yoke or small bridge that ensures balanced braking force distribution.

3. Flexibility and strength

The cable must combine flexibility—for smooth operation—with strength, to withstand braking tension without fraying. Most cables are made of stainless steel and may be pre-lubricated to reduce friction inside the housing.

4. Adjustability

Cantilever cables allow fine-tuning of brake pad positioning on the rim, using tension screws on the brake arms. Cable tension can also be adjusted via barrel adjusters near the lever or cable stop.

Advantages of cantilever brake systems

• Efficiency: Braking force is distributed across both arms, delivering strong stopping power even in wet or dirty conditions.

• Wide tire clearance: The wide arm spacing accommodates large-volume tires, ideal for MTB or touring setups.

• Easy maintenance: Cable or brake pad replacement is straightforward, even for casual cyclists.

Tips for maintaining your cantilever brake cable

• Lubricate regularly inside the housing to prevent friction.

• Check for wear at the cable ends, especially near the lever.

• Replace the cable if you notice corrosion or loss of tension.

• Adjust brake pad alignment to maintain effective braking and reduce rim wear.

In summary

The cantilever brake cable is an essential component for ensuring reliable braking on bikes using this center-pull system. When properly maintained and installed, it offers smooth, progressive, and dependable braking—perfect for demanding riding conditions. Whether you're into mountain biking, touring, or restoring a vintage ride, understanding your brake cable's specs can significantly improve your bike’s performance and your safety.
