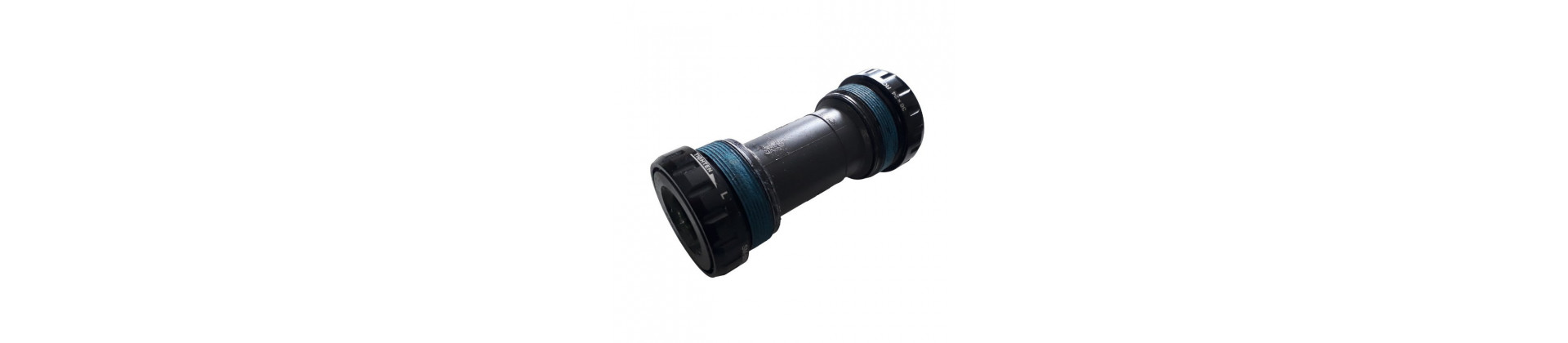

Bottom bracket

The XC MTB bottom bracket performs several essential functions and is a key component of the Shimano MTB crankset. Whether you are using a 3x chainring MTB crankset or a setup with different MTB chainrings, this bottom bracket ensures strength, smooth pedaling, and compatibility with the main standards.

Function of a MTB bottom bracket :

1. Bottom bracket support:

The bottom bracket houses the bottom bracket spindle on which the cranks are mounted. It ensures the proper alignment and smooth operation of the bike's drivetrain assembly.

2. Transmission of pedaling power:

The bottom bracket allows for the efficient transmission of the rider's pedaling power from the cranks to the chain, helping to propel the bike forward.

3. Protection from the elements:

It protects the bearings and internal components of the bottom bracket system from water, dirt, dust and other debris that could negatively affect their performance and durability.

Features of a MTB bottom bracket :

1. Housing type:

There are several types of bottom brackets, each with different fitment and compatibility specifications. The most common types are press-fit housings, threaded housings (English or Italian), and press-fit housings.

2. Width:

Bottom bracket width may vary depending on bike type and frame design. The most common width standards for XC mountain bikes are 68mm to 73mm wide housings for threaded housings and press-fit housings.

3. Threading or fitting:

Threaded bottom brackets are screwed into the frame and secured in place by matching threads inside the frame. This type of system is especially appreciated for its reliability and ease of maintenance, particularly with a Shimano MTB bottom bracket designed for regular off-road riding.

Press-fit bottom brackets are pressed into the frame without threads and held in place by pressure. They provide weight savings and improved compatibility with certain modern frames while delivering excellent pedaling stiffness.

Press-in bottom brackets use a similar method but are designed for a precise fit inside the frame without additional pressure. This system remains compatible with different standards, including some square taper MTB bottom bracket models, which are still widely used for their durability and mechanical simplicity.

4. Type of bearings:

Bottom brackets can use different types of bearings, such as external bearings, internal bearings, or sealed cartridge bearings. These choices affect the durability, ease of maintenance and performance of the bottom bracket system.

5. Construction material:

Bottom brackets are typically made from aluminum, steel, or reinforced plastic for the optimal combination of lightness, strength, and durability.

In summary, the MTB bottom bracket is an essential component that ensures the proper functioning of the bike's transmission and pedaling system. With different features and standards available, it is important to choose a bottom bracket that matches the frame design, crank type and specific needs of the XC mountain bike.
