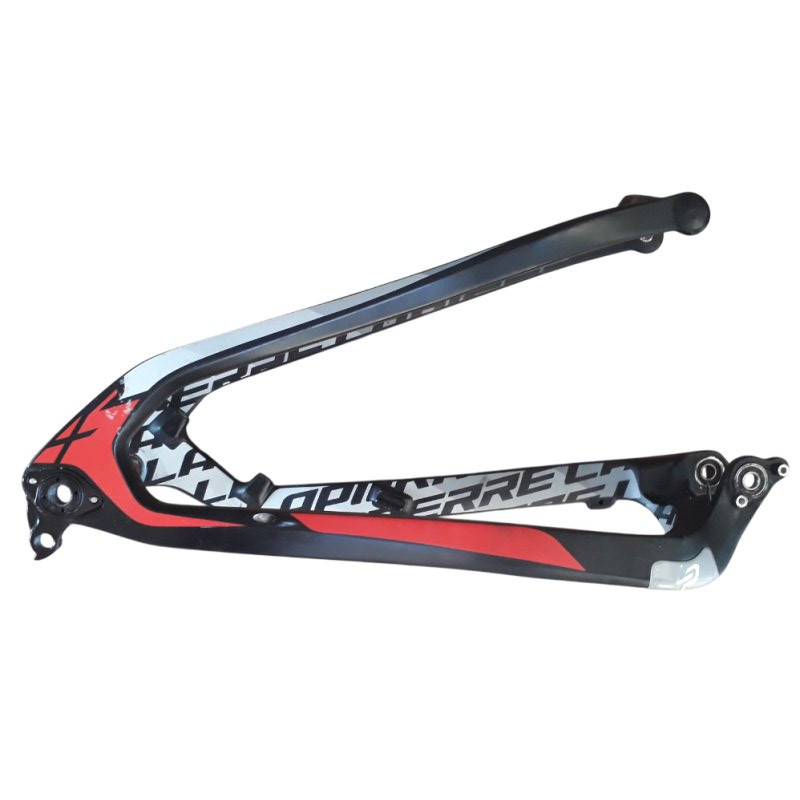

Lapierre XR 29 inch mountain bike rear triangle

Rear triangle MTB: focus on the Lapierre XR frame, a concentrate of performance

In the world of full-suspension mountain bikes, the rear triangle plays a key role in power transfer, structural support, and rider comfort. On the Lapierre XR, a bike designed for cross-country and marathon racing, this crucial part of the MTB frame is engineered for top-level performance. But what makes it so special? Let’s break down the features and unique aspects of this high-performance rear triangle.

What is the rear triangle on a mountain bike ?

The rear triangle refers to the section of the frame that connects the bottom bracket to the rear axle, via the chainstays and seatstays. On a full-suspension MTB like the Lapierre XR, this area is articulated to integrate the rear shock, enabling dynamic handling of bumps and rough terrain.

The Lapierre XR rear triangle: design and materials

The Lapierre XR features a UD SLI (Super Light Innovation) carbon frame, designed for optimal stiffness-to-weight ratio. The rear triangle continues the monocoque carbon design, with a strong focus on suspension kinematics and frame integrity.

Key features:

• Material: high-strength carbon fiber for optimal weight and rigidity.

• Asymmetrical chainstays: improve pedaling efficiency and sprint response.

• Slim seatstays: help absorb vibrations while maintaining lateral stiffness.

• Boost spacing (148 mm): increases rear wheel stiffness and tire clearance.

• 12 mm thru-axle: enhances rear-end stiffness and downhill control.

A progressive suspension system

The XR’s rear triangle integrates Lapierre’s proprietary FPS (Four Bar Linkage) suspension platform. This setup ensures a smooth suspension response and excellent pedaling efficiency. The shock is horizontally mounted and integrated into the top tube, lowering the bike’s center of gravity.

The result: a bike that climbs efficiently, descends confidently, and responds instantly to acceleration.

A frame designed for modern XC riding

The Lapierre XR rear triangle was built with modern cross-country racing in mind. With optimized wheelbase and progressive geometry, its compact 435 mm chainstays deliver both agility and traction on technical trails. The stiff rear end ensures efficient power transfer, while vertically compliant seatstays provide grip and comfort when descending.

Why replace or maintain the rear triangle ?

On full-suspension bikes, the rear triangle endures high levels of stress. It may need replacing after a crash or show wear over time. With the Lapierre XR, it’s possible to replace just the rear triangle without changing the whole frame—provided the pivot system, axle, and shock mounts are fully compatible.

Key things to check:

• Bearing or pivot play.

• Cracks in seatstays or chainstays.

• Derailleur hanger alignment (mounted on the rear triangle).

Conclusion

The rear triangle MTB design of the Lapierre XR perfectly combines lightness, stiffness, and efficiency. Its advanced engineering, tailored to high-level cross-country demands, makes it a real asset on all terrains. Whether upgrading or replacing, choosing a compatible rear triangle is crucial to maintain the performance and handling of your XR frame.
